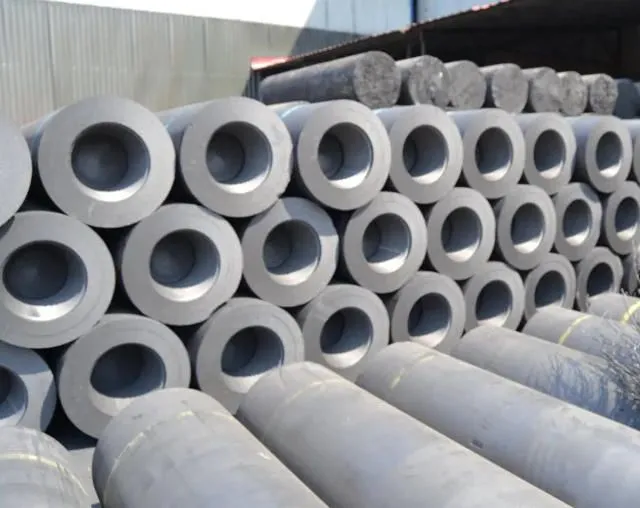

Graphite Electrode

The graphite electrode will be a high-temperature graphite conductive material, the core of which consists of petroleum coke, tar coke as a filler, coal tar as a binder. We produce graphite electrodes,nipples and blocks to them. Graphite electrodes are characterized by low resistance, good electrical conductivity and thermal conductivity, high resistance to oxidation and thermal shock, high mechanical strength, etc.

Applications of Graphite Electrode UHP

1.For arc furnaces of electric arc furnaces. Graphite electrodes are most often used in a coal-smelting electric furnace. 2.For a closed arc 3.For a resistor furnace 4.For the production of graphite shaped products. The graphite electrode blank is also used for processing in various crucibles,shapes, boats and heating elements and other graphite products. For example, in the quartz glass industry, for each production of 1 ton of an electric melting tube, a graphite electrode 10 m is required, for each quartz brick of 1 ton it is necessary to consume 100 kg of graphite electrode.

Characteristics Of Graphite electrodes:

1. Excellent Thermal Conductivity Graphite boasts exceptional thermal conductivity, far superior to most metals. It can efficiently transfer heat and maintain stable thermal performance even in extreme temperature environments (from ultra-low to high temperatures above 3000℃). This advantage makes it an ideal material for heat dissipation components, high-temperature furnaces, and thermal management systems in electronics, metallurgy, and aerospace industries.

2. High Temperature Resistance With an extremely high melting point (around 3652℃) and boiling point (4827℃), graphite can maintain its structural integrity and mechanical properties without melting or decomposing under high-temperature conditions. It is resistant to thermal shock and can withstand rapid temperature changes, which is crucial for applications in high-temperature smelting, aerospace engine parts, and high-temperature experimental equipment.

3. Good Electrical Conductivity As a good electrical conductor, graphite has low electrical resistivity and excellent current-carrying capacity. It is widely used in the production of electrodes, brushes, conductive plates, and other electrical components.

4. Outstanding Chemical Stability Graphite is chemically inert and not easy to react with most acids, alkalis, and organic solvents.

5. Excellent Lubrication Performance Graphite has a layered crystal structure, and the layers can slide easily, providing excellent self-lubricating performance. It can work stably without additional lubricants, even under high load, high temperature, and high speed. This advantage makes it an ideal lubricating material for mechanical parts, molds, and sliding components, reducing friction and wear and improving equipment operation efficiency.

6. Light Weight and High Strength Compared with traditional metal materials, graphite products are lighter in weight while maintaining high mechanical strength and hardness.
