High Power Graphite Electrodes For Arc Furnaces Of Steel Making

Mr. devin May 1, 2026

High Power Graphite Electrodes For Arc Furnaces Of Steel Making



Graphite electrode is made from the domestic first class petroleum coke and high quality needle coke and widely used in the electric arc furnaces for production of alloy steels, metal and other nonmetallic materials, etc. The Graphite electrodes include: regular power, high power, ultra high power and square electrode. The range of diameters covers from 200mm to 800mm. Our products own the following characteristics: low electric resistivity, good electrical and thermal conductivity, high oxidation resistance, greater resistance to thermal and mechanical shock, high mechanical strength, high machining accuracy.
CNBM and its partner have 4 production bases and the annual production capacity of graphite electrodes is 60,000 MT.



Type: Graphite Electrode

Application: smelting industries , steel -making

Length: 1400-2800mm

Grade: UHP (Ultra High Power)

Resistance (μΩ.m): 5.5

Apparent Density (g/cm3): 1.69

Thermal Expansion: 1.4

Flexural Strength (N/m2): 12

ELASTIC MODULUS: 8.0

ASH: 0.3% Max

Raw Material: Needle Coke,Petroleum Coke

Nipple: 3TPI 4TPI

Style: UHP Ultra High Power Graphite Electrode

Color: Grey Black

Properties

Unit

UHP

HP

RP



300-600mm

650-800mm

300-800mm

300-800mm




Electric resistivity

Electrode

μΩm

4.8-5.8

4.6-5.8

5.8-6.6

7.8-8.8

Nipple

3.8-4.5

3.8-4.5

4.2-5.0

5.0-6.5



Flexural strength

Electrode

Mpa

10.0-14.0

10.0-14.0

10.0-13.0

7.0-12.0

Nipple

20.0-26.0

22.0-26.0

18.0-22.0

15.0-20.0



Young's modulus

Electrode

Gpa

9.0-13.0

10.0-14.0

8.0-12.0

7.0-9.3

Nipple

15.0-18.0

15.0-18.0

14.0-16.0

12.0-14.0



Bulk density

Electrode

≥g/cm3

1.68-1.74

1.70-1.74

1.62-1.66

1.53-1.56

Nipple

1.77-1.82

1.78-1.84

1.74-1.80

1.70-1.74



CTE(100-600ºC)

Electrode

x10-6/ºC

1.1-1.4

1.1-1.4

1.6-1.9

2.2-2.6

Nipple

0.9-1.2

0.9-1.2

1.1-1.4

2.0-2.5



Ash

0.3

0.3

0.3

0.5






GradePositionSpecific ResistivityBulk densityBending StrengthC.T.EElastic ModulusAsh
RPBody≤8.5 μΩ•m≥1.54g/cc≥8.5 Mpa≤2.4 x10-6/ºC≤9.3 Gpa≤0.4%
Nipple≤5.2 μΩ•m≥1.72g/cc≥17.0 Mpa≤2.3 x10-6/ºC≤14.0 Gpa≤0.4%
HPBody≤6.8 μΩ•m≥1.65g/cc≥11.0 Mpa≤2.3 x10-6/ºC≤12.0 Gpa≤0.3%
Nipple≤5.0 μΩ•m≥1.74g/cc≥18.0 Mpa≤2.1 x10-6/ºC≤16.0 Gpa≤0.2%
UHPBody≤6.0 μΩ•m≥1.66g/cc≥12.0 Mpa≤1.4 x10-6/ºC≤14.0 Gpa≤0.2%
Nipple≤4.0 μΩ•m≥1.77g/cc≥21.0 Mpa≤1.3 x10-6/ºC≤18.0 Gpa≤0.2%



Advantages of Graphite electrode:

* High density, high temperature resistance, high mechanical strength and strong chemical stability.
* The surface can be treated with anti-oxidation.
* Corrosion resistance, strong acid and alkali resistance.
* Excellent thermal shock resistance, electrical conductivity and thermal conductivity.
* Strong wear resistance and lubricating performance.
* Long service life.

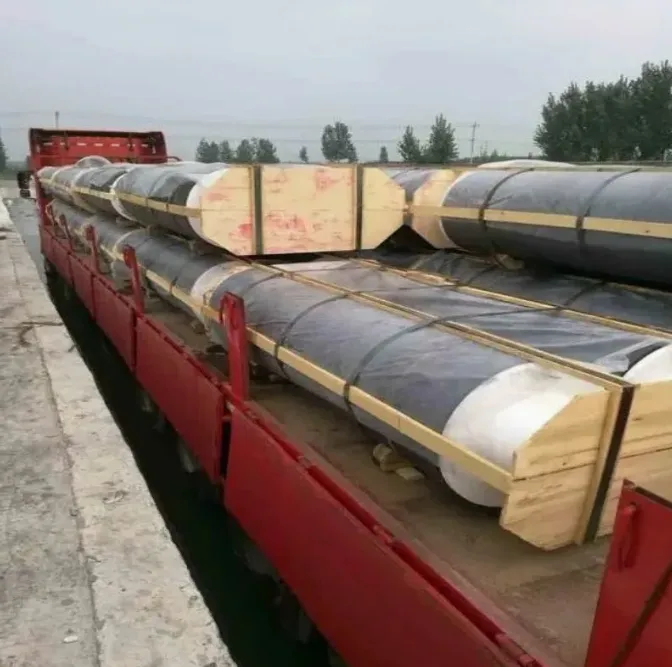

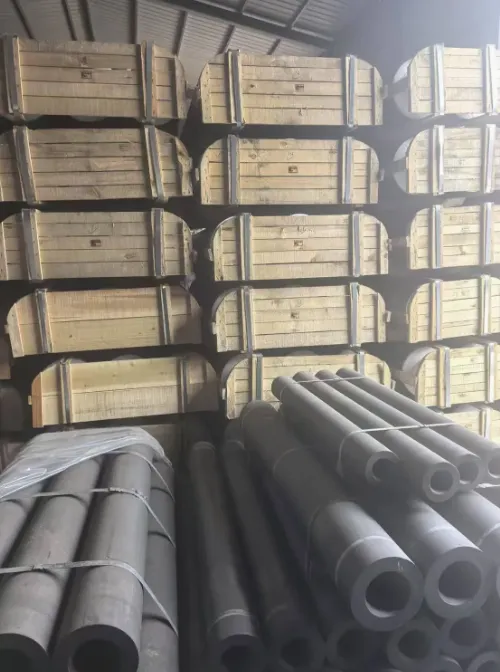

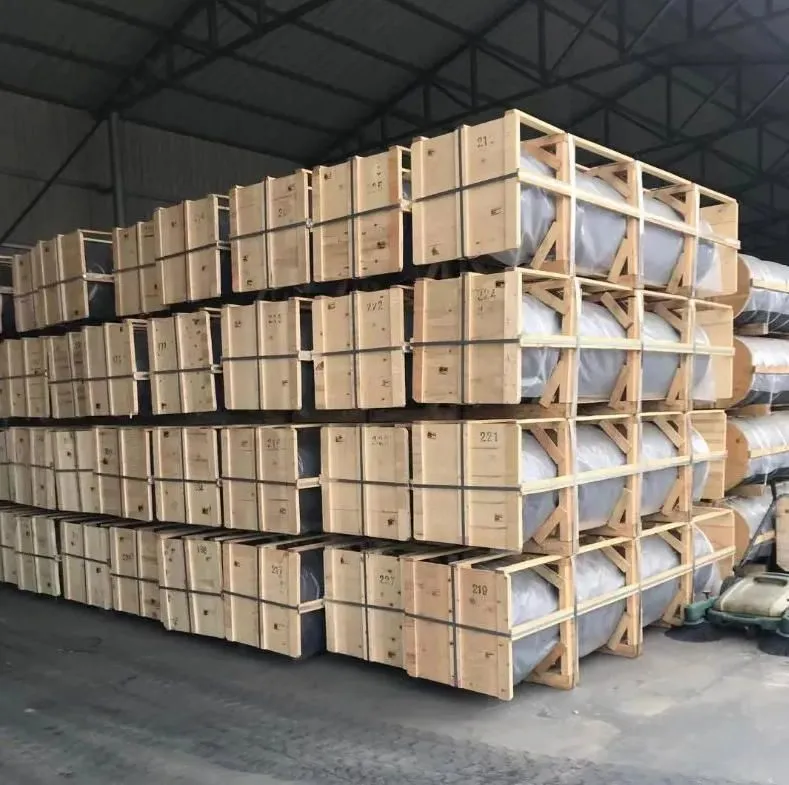

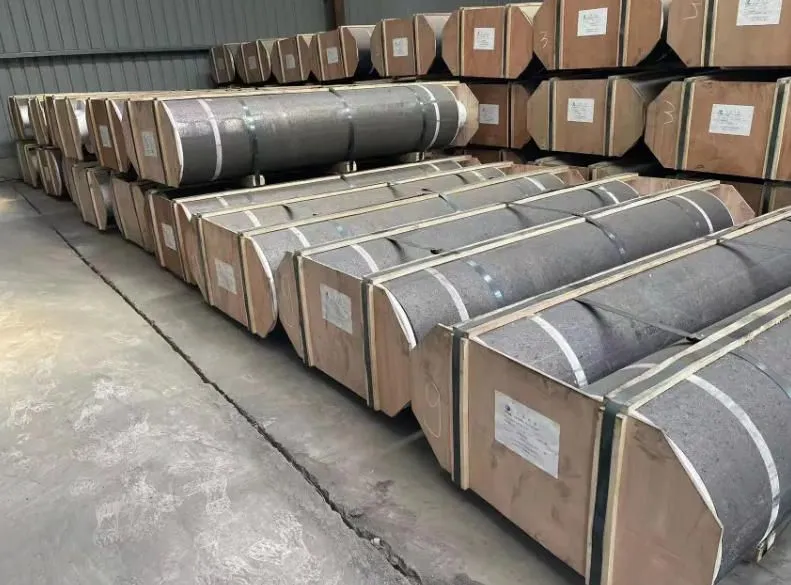

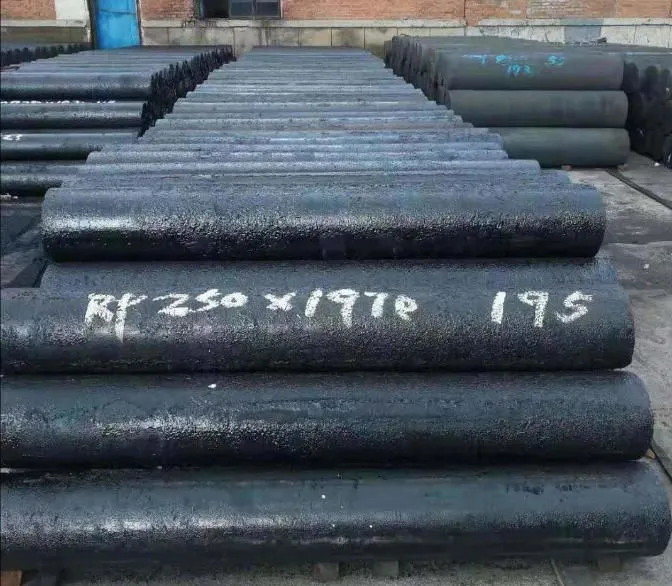

ScreenShot_2026-04-09_213221_247ScreenShot_2026-04-10_072306_172ScreenShot_2026-04-09_215856_193ScreenShot_2026-04-09_215847_545ScreenShot_2026-04-09_213214_559
