High Carbon UHP High Power Graphite Electrode 100-700mm
High Carbon UHP High Power Graphite Electrode 100-700mm

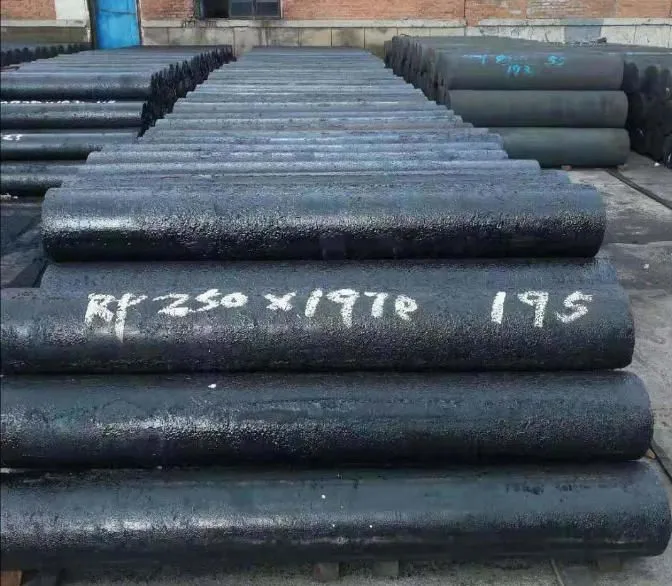

Graphite Electrode is used as conductive material in arc furnace.Graphite electrode mainly uses petroleum coke and needle coke as raw materials, coal pitch as binder, after calcination, batching, kneading, molding, roasting and graphitization, machining, it in the arc furnace in the form of arc conduction to release electricity.

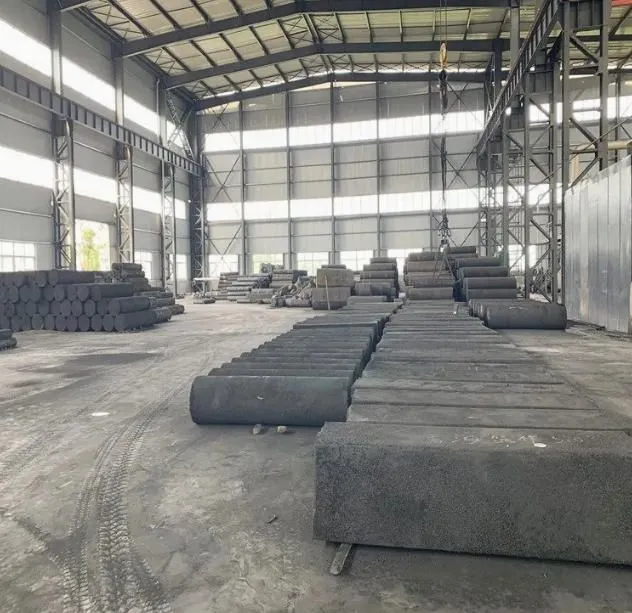

RP/HP/UHP graphite electrodes in diameter 100mm-600mm, we have a complete calcining, crushing, forming, baking, impregnation, graphitization, machining production lines and advanced technology and complete quality test equipment for quality control.
Type: Graphite Electrode
Application: smelting industries , steel -making
Length: 1400-2800mm
Grade: UHP (Ultra High Power)
Resistance (μΩ.m): 5.5
Apparent Density (g/cm3): 1.69
Thermal Expansion: 1.4
Flexural Strength (N/m2): 12
ELASTIC MODULUS: 8.0
ASH: 0.3% Max
Raw Material: Needle Coke,Petroleum Coke
Nipple: 3TPI 4TPI
Style: UHP Ultra High Power Graphite Electrode
Color: Grey Black
Physical and chemical indexes of ordinary power graphite electrode
| Nominal Diameter(mm) | ||||||||
| 75--200 | 250--300 | 400--500 | ||||||
| Item | Classify | Unit | Superior product | First grade | Superior product | First grade | Superior product | First grade |
| A | B | A | B | A | B | |||
| electrical resistivity ≯ | electrode | μΩ.m | 8 | 9 | 8 | 9 | 8 | 9 |
| joint | 7.5 | 7.5 | 7.5 | |||||
| breaking strength≯ | electrode | M Pa | 10 | 10 | 8 | |||
| joint | 15 | 15 | 15 | |||||
| elasticity modulus≯ | electrode | GP a | 12 | 12 | 12 | |||
| joint | 14 | 14 | 14 | |||||
| volume density≯ | electrode | g/cm3 | 1.58 | 1.58 | 1.58 | |||
| joint | 1.68 | 1.68 | 1.68 | |||||
| CTE(100-600)≯ | electrode | X10-6/ºC | 2.7 | 2.7 | 2.7 | |||
| joint | 2.5 | 2.5 | 2.5 | |||||
| Ash≯ | % | 0.3 | 0.3 | 0.3 | ||||
| Note: ash and thermal expansion coefficient are reference indexe |
Physicochemical index of high power graphite electrode
| Item | Classify | Unit | Nominal Diameter(mm) | ||
| 200-400 | 450-500 | 550-600 | |||
| electrical resistivity≯ | electrode | μΩ.m | 7 | 7 | 7 |
| joint | 6 | 6 | 5.8 | ||
| breaking strength≯ | electrode | M Pa | 10.5 | 10 | 10 |
| joint | 14 | 14 | 16 | ||
| elasticity modulus≯ | electrode | GP a | 12 | 12 | 12 |
| joint | 16 | 16 | 16 | ||
| volume density≯ | electrode | g/cm3 | 1.62 | 1.62 | 1.62 |
| joint | 1.72 | 1.72 | 1.72 | ||
| CTE(100C-600C)≯ | electrode | X10-6/ºC | 2.4 | 2.4 | 2.4 |
| joint | 2.3 | 2.2 | 2.2 | ||
| Ash≯ | % | 0.3 | 0.3 | 0.3 | |
| Note: ash and thermal expansion coefficient are reference indexes |
Physical and chemical indexes of super high power graphite electrode
| Item | Classify | Unit | Nominal Diameter(mm) | ||
| 300-400 | 450-500 | 550-700 | |||
| electrical resistivity≯ | electrode | μΩ.m | 6.2 | 6.2 | 6.3 |
| joint | 5 | 5 | 4.5 | ||
| breaking strength≯ | electrode | M Pa | 10.5 | 10.5 | 11 |
| joint | 18 | 18 | 20 | ||
| elasticity modulus≯ | electrode | G Pa | 14 | 14 | 14 |
| joint | 18 | 18 | 22 | ||
| volume density≯ | electrode | g/cm3 | 1.66 | 1.66 | 1.66 |
| joint | 1.75 | 1.75 | 1.75 | ||
| CTE(100C-600C)≯ | electrode | X10-6/ºC | 1.5 | 1.5 | 1.4 |
| joint | 1.4 | 1.4 | 1.2 | ||
| Ash≯ | % | 0.3 | 0.3 | 0.3 | |
| Note: ash and thermal expansion coefficient are reference indexes |
