RP HP UHP Grade 150mm-750mm Graphite Electrode with Nipples
RP HP UHP Grade 150mm-750mm Graphite Electrode with Nipples
Graphite Electrode is made of high-quality low ash materials, such as petroleum coke, needle coke and coal pitch.after calcining,burdening,kneading,forming,baking and pressure impregnation, graphitization and then precision machined with professional CNC machining.such of the products own characteristics with low resistivity, good electrical conductivity ,low ash, compact structure,good anti oxidation and high mechanical strength, Widely used in LF, EAF for steel making industry, Non-ferrous industry, silicon and phosphorus industry.so it is the best conductive material for electric arc furnace and smelting furnace.
Type: Graphite Electrode
Application: smelting industries , steel -making
Length: 1400-2800mm
Grade: UHP (Ultra High Power)
Resistance (μΩ.m): 5.5
Apparent Density (g/cm3): 1.69
Thermal Expansion: 1.4
Flexural Strength (N/m2): 12
ELASTIC MODULUS: 8.0
ASH: 0.3% Max
Raw Material: Needle Coke,Petroleum Coke
Nipple: 3TPI 4TPI
Style: UHP Ultra High Power Graphite Electrode
Color: Grey Black
Physical and chemical indexes of ordinary power graphite electrode
| Nominal Diameter(mm) | ||||||||
| 75--200 | 250--300 | 400--500 | ||||||
| Item | Classify | Unit | Superior product | First grade | Superior product | First grade | Superior product | First grade |
| A | B | A | B | A | B | |||
| electrical resistivity ≯ | electrode | μΩ.m | 8 | 9 | 8 | 9 | 8 | 9 |
| joint | 7.5 | 7.5 | 7.5 | |||||
| breaking strength≯ | electrode | M Pa | 10 | 10 | 8 | |||
| joint | 15 | 15 | 15 | |||||
| elasticity modulus≯ | electrode | GP a | 12 | 12 | 12 | |||
| joint | 14 | 14 | 14 | |||||
| volume density≯ | electrode | g/cm3 | 1.58 | 1.58 | 1.58 | |||
| joint | 1.68 | 1.68 | 1.68 | |||||
| CTE(100-600)≯ | electrode | X10-6/ºC | 2.7 | 2.7 | 2.7 | |||
| joint | 2.5 | 2.5 | 2.5 | |||||
| Ash≯ | % | 0.3 | 0.3 | 0.3 | ||||
| Note: ash and thermal expansion coefficient are reference indexe |
Physicochemical index of high power graphite electrode
| Item | Classify | Unit | Nominal Diameter(mm) | ||
| 200-400 | 450-500 | 550-600 | |||
| electrical resistivity≯ | electrode | μΩ.m | 7 | 7 | 7 |
| joint | 6 | 6 | 5.8 | ||
| breaking strength≯ | electrode | M Pa | 10.5 | 10 | 10 |
| joint | 14 | 14 | 16 | ||
| elasticity modulus≯ | electrode | GP a | 12 | 12 | 12 |
| joint | 16 | 16 | 16 | ||
| volume density≯ | electrode | g/cm3 | 1.62 | 1.62 | 1.62 |
| joint | 1.72 | 1.72 | 1.72 | ||
| CTE(100C-600C)≯ | electrode | X10-6/ºC | 2.4 | 2.4 | 2.4 |
| joint | 2.3 | 2.2 | 2.2 | ||
| Ash≯ | % | 0.3 | 0.3 | 0.3 | |
| Note: ash and thermal expansion coefficient are reference indexes |
Physical and chemical indexes of super high power graphite electrode
| Item | Classify | Unit | Nominal Diameter(mm) | ||
| 300-400 | 450-500 | 550-700 | |||
| electrical resistivity≯ | electrode | μΩ.m | 6.2 | 6.2 | 6.3 |
| joint | 5 | 5 | 4.5 | ||
| breaking strength≯ | electrode | M Pa | 10.5 | 10.5 | 11 |
| joint | 18 | 18 | 20 | ||
| elasticity modulus≯ | electrode | G Pa | 14 | 14 | 14 |
| joint | 18 | 18 | 22 | ||
| volume density≯ | electrode | g/cm3 | 1.66 | 1.66 | 1.66 |
| joint | 1.75 | 1.75 | 1.75 | ||
| CTE(100C-600C)≯ | electrode | X10-6/ºC | 1.5 | 1.5 | 1.4 |
| joint | 1.4 | 1.4 | 1.2 | ||
| Ash≯ | % | 0.3 | 0.3 | 0.3 | |
| Note: ash and thermal expansion coefficient are reference indexes |
Advantages of Graphite electrode:
1. Reduce graphite electrodes lateral oxidation rate.
2. Lessen graphite electrodes consumption rate by 15%~20%.
3. Improve graphite electrodes cost efficiency.
4. It is a more cost-effective solution through reducing graphite electrodes purchasing cost by 10%~15%.
5. It is a production efficiency improving solution through reducing risk of graphite electrodes breakage and falling down.
The graphite electrode for arc furnaces and ladle refining furnaces for steel industries/steel plant in steel making.

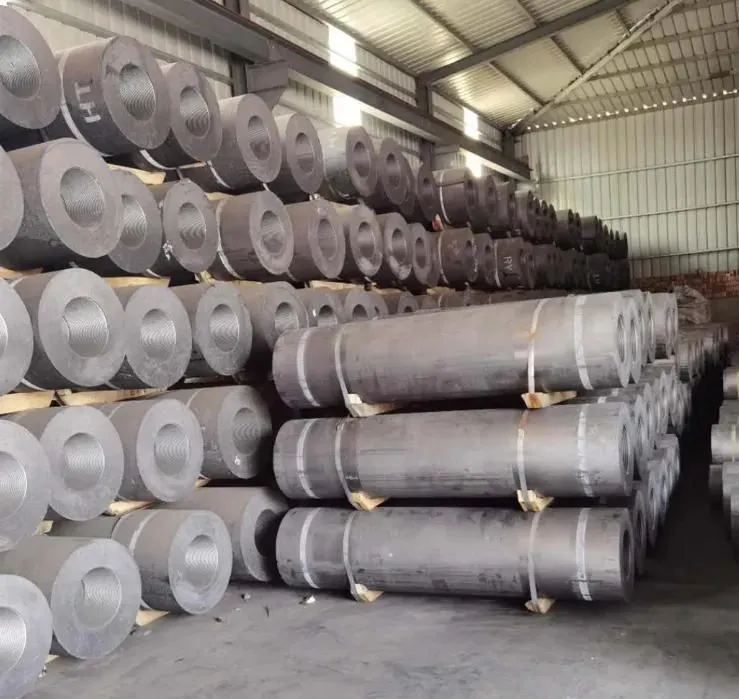

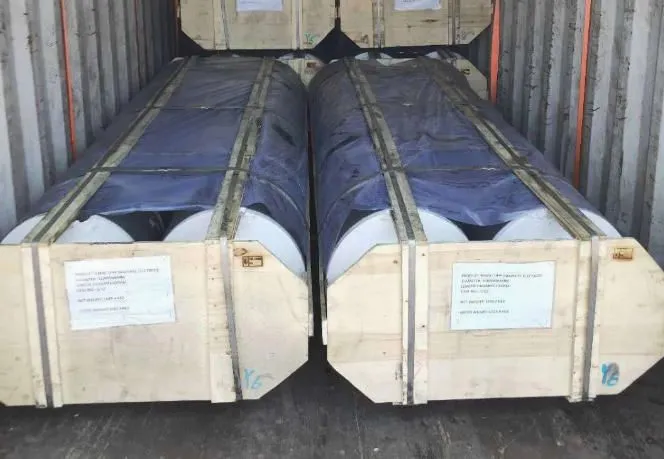

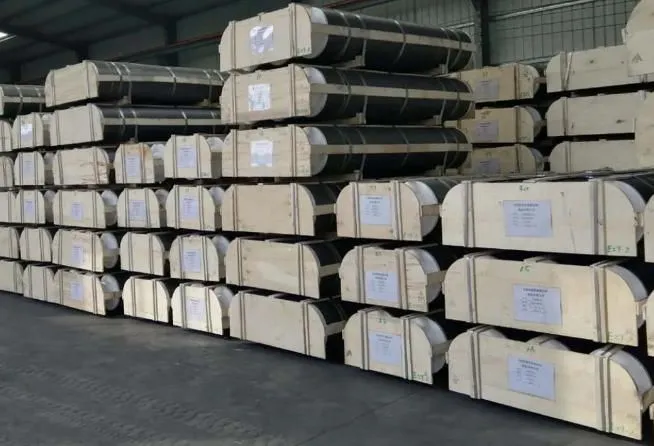

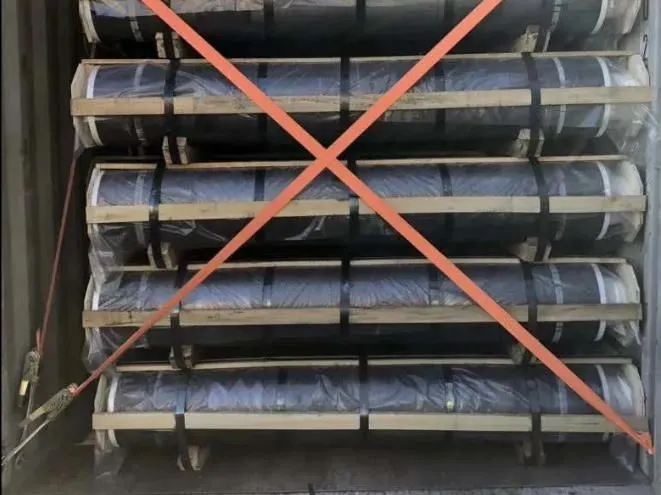

Graphite electrodes will be stored in a clean and dry place. It can be used both indoors and outdoors. Whether indoors or outdoors, the goods will be loaded and transported away as soon as possible. If it is rainy or cloudy, the electrodes will be covered in advance to prevent damage.
