UHP Grade Graphite Electrode Graphite Electrode Scrap Manufacturer
UHP Grade Graphite Electrode Graphite Electrode Scrap Manufacturer
Graphite Electrode is made of high-quality low ash materials, such as petroleum coke, needle coke and coal pitch.after calcining,burdening,kneading,forming,baking and pressure impregnation, graphitization and then precision machined with professional CNC machining.such of the products own characteristics with low resistivity, good electrical conductivity ,low ash, compact structure,good anti oxidation and high mechanical strength, Widely used in LF, EAF for steel making industry, Non-ferrous industry, silicon and phosphorus industry.so it is the best conductive material for electric arc furnace and smelting furnace. Characteristics Of Graphite electrodes: Our graphite electrodes are with low electric resistance, high density, high anti-oxidation capability, precise machining accuracy, especially with low sulphur and low ash will not give steel second time
Application:
Graphite electrodes are used mainly in ladle furnaces,electric-arc furnace steelmaking,Yellow phosphorus furnace , Industrial silicon furnace or melting copper. They are presently the only products available that have the high levels of electrical conductivity and the capability of sustaining the extremely high levels of heat generated in this demanding environment.High Quality Needle Coke in HP&UHP graphite electrode,ensure the electrode application is perfect. Graphite electrodes are also used to refine steel in ladle furnaces and in other smelting processes.
Graphite Electrode Diameter:
from 75 to 700mm. We can produce various specifications according to customer requirements.
Technical Data
| ITEMS | CLASSIFICATION | UNIT | NOMINAL DIAMETER(MM) 200MM
|
| ELECTRICAL RESISTANCE (MAX) | POLE / NIPPLE | μΩm | 9.0-8.0 |
| BENDING STRENGTH (MIN) | POLE / NIPPLE | Mpa | 10.0-15.0 |
| YOUNG'S MDULUS (MAX) | POLE / NIPPLE | Gpa | 9.4-14.0 |
| BULK DENSITY (MIN) | POLE / NIPPLE | g/cm³ | 1.58-1.70 |
THERMAL EXPANSION COEFFICIENT (MIN) (100℃--600℃) CTE | POLE / NIPPLE | ×10-6/℃ | 2.9-2.7 |
| ASH CONTENT (MAX) | --- | % | 0.5 |
The graphite electrode for arc furnaces and ladle refining furnaces for steel industries/steel plant in steel making.

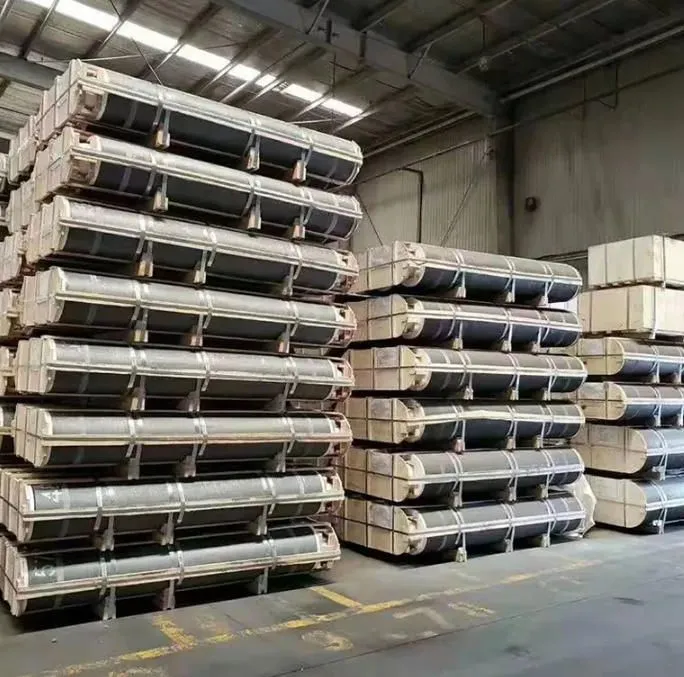

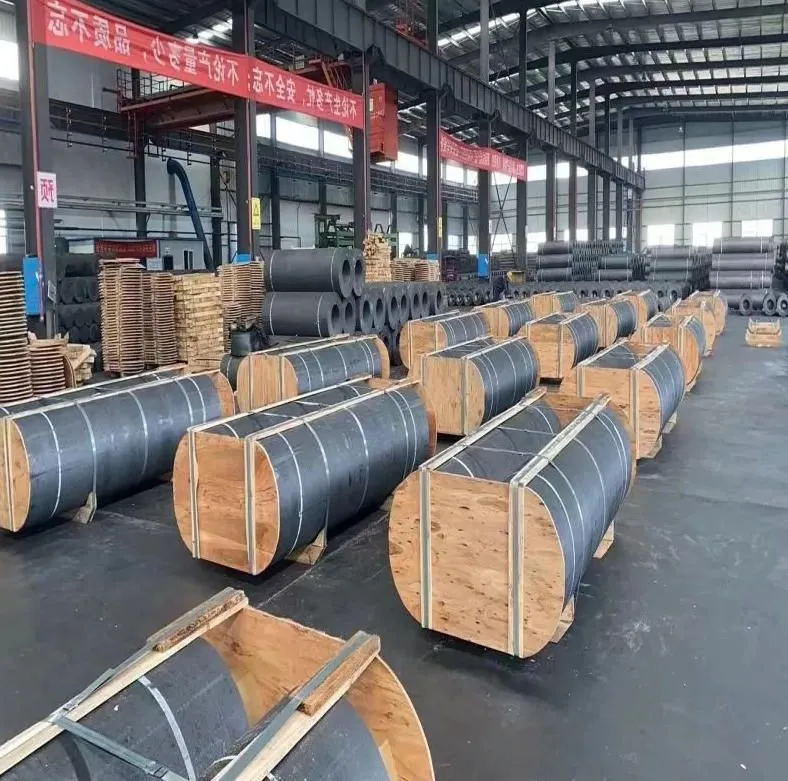

Graphite electrodes will be stored in a clean and dry place. It can be used both indoors and outdoors. Whether indoors or outdoors, the goods will be loaded and transported away as soon as possible. If it is rainy or cloudy, the electrodes will be covered in advance to prevent damage.
